SAGA1-L40
SAGA1-L40 SAGA1-L40 SAGA1-L40 SAGA1-L40 SAGA1-L40 SAGA1-L40

คลิกดูรูปสินค้า 360 องศา

Click to see the product 360°


Safety - Reliability - User – Friendly

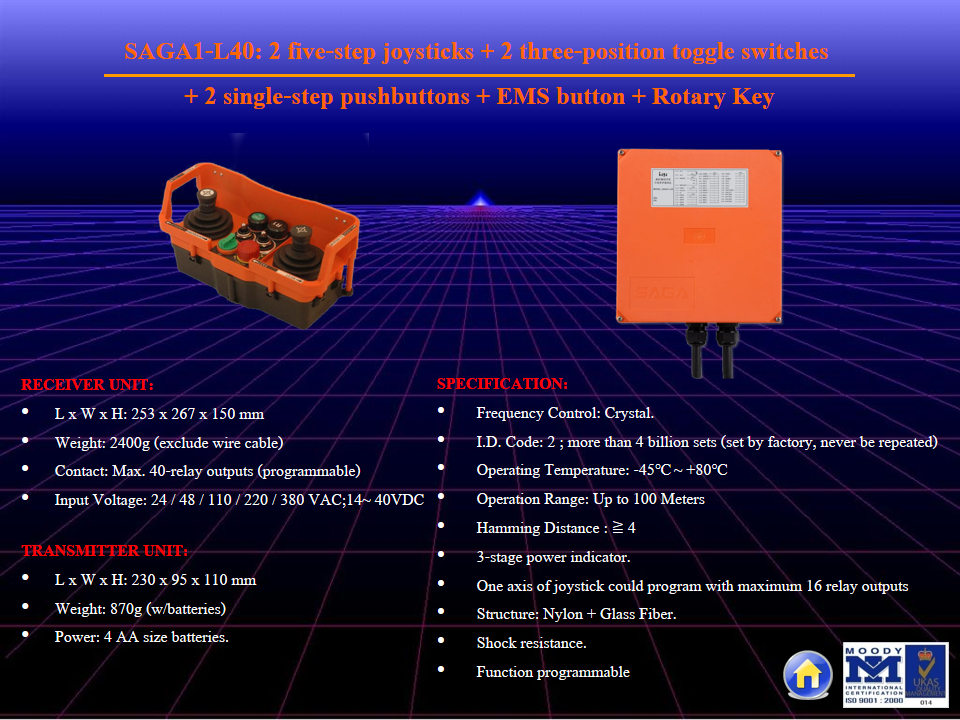

SAGA1-L40: 2 five-single-step joysticks + 2 three-position toggle switches + 2 single-step pushbuttons + EMS button + Rotary Key

Feature:
  • Tiny size & very light weight easy for operation Durable, robust IP65(NEMA4) industrial casing.
  • 4.1 billion unique ID codes for maximum security.
  • Error - eliminated Hamming code technology.
  • Working temperature from -45℃ ~ +80℃.
  • Long operating distance up to 100M.
  • 3 - stage LED battery power indicator.
  • Anti - power interruption design.
  • Pre - wired receiver for quick and easy installation.
  • One axis of joystick could program with maximum 16 relays (Contact: Max. 40-relay outputs)
  • Tiny size & very light weight easy for operation.

General  Specification:
  • Frequency Control: Crystal.
  • 2 Toggle Switches (A-Both-B or A-Off-B)
  • 2 Dual Axis Joysticks (can be Gated)
  • Internal Antenna
  • Sensitivity: Approximately -105 dBm
  • I.D. Code: 2 ; more than 4 billion sets (set by factory, never be repeated)
  • Operating Temperature: -45℃ ~ +80℃
  • Operation Range: Up to 100 Meters
  • Hamming Distance : ≧ 4
  • 3-stage power indicator.
  • One axis of joystick could program with maximum 16 relay outputs
  • Structure: Nylon + Glass Fiber.
  • Shock resistance.
  • Function programmable

TRANSMITTER UNIT:
  • L x W x H: 230 x 95 x 110 mm
  • Weight: 870g (w/batteries)
  • Power: 4 AA size batteries

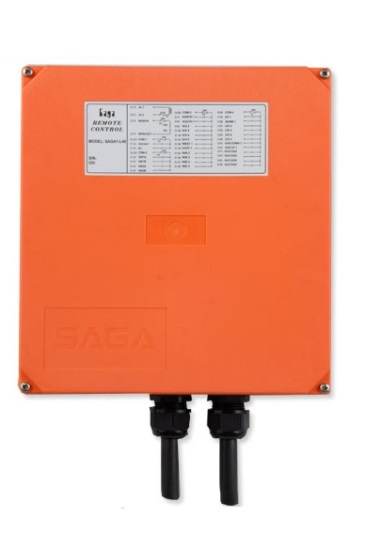

RECEIVER UNIT:
  • L x W x H: 253 x 267 x 150 mm
  • Weight: 2,400g (exclude wire cable)
  • Contact: Max. 40-relay outputs (programmable)
  • Input Voltage: 24 / 48 / 110 / 220 / 380 VAC ; 12~36VDC

รายละเอียดสินค้า
  • การควบคุม: Frequency Control: Crystal.
  • ระยะการส่ง: Operation Range: Up to 100 Meters.
  • สภาพแวดล้อม: Temperature: -45℃ ~ +80℃.
  • ความทนทาน: IP65, Nylon + Glass Fiber.
  • สั่งงาน: รับคำสั่งโดยการโยกjoystick 2 ข้างๆละ 5 function
  • น้ำหนัก: TRANSMITTER UNIT:870g (batteries 4 AA size)

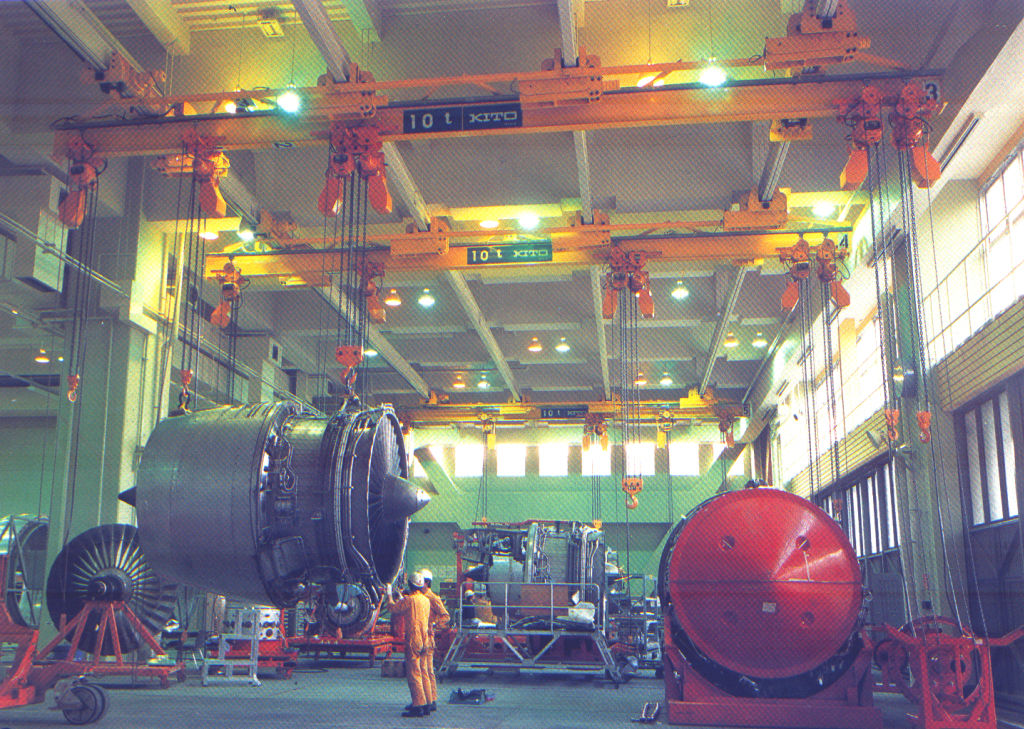

  • รุ่นนี้สามารถที่ควบคุมเครนทั้ง 2 ตัวให้ทำงานพร้อมกัน เหมาะกับโครงสร้างเครนขนาดใหญ่ เพราะมี Relay ควบคุมการทำงานถึง40 เอาท์พุต  การทำงานด้วย joystick จะมีสายคาดเอวและสายคล้องคอทำให้จับถนัดมือในการควบคุมรอกและเครน
