SAGA1-L40N
SAGA1-L40N SAGA1-L40N

คลิกดูรูปสินค้า 360 องศา

Click to see the product 360°


SAGA1-L40N : Five-step Joysticks x 2  /  3-position Toggle Switch x 2  /  Single-step Pushbutton x 2 / EMS Pushbtton / Rotary Key

Feature:
  •  Maximum 16 relays output per single command
  •  Enhanced silicon rubber joystick cover
  •  Joystick unit equipped with "optical sensor" for neutrol position control
  •  Enhanced joystick mechanical gears for extending life cycle

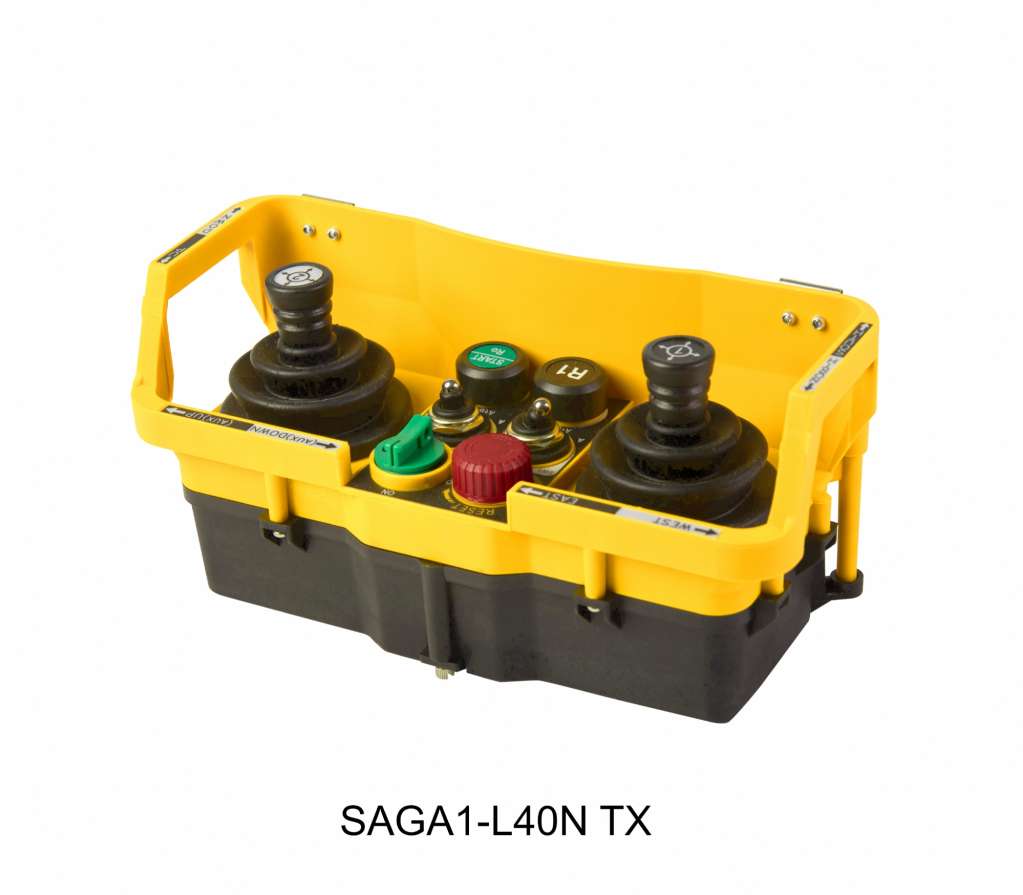

TRANSMITTER UNIT:
  • Structure: Nylon + Glass Fiber.
  • Emission Power:  < 10 mW
  • Power Supply: 4 AA Size Disposable Battery / Rechargeable (Ni-MH)
  • LED Power Indicator: 3 Stages Power Indicator
  • Dimension: 230 x 95 x 110 mm (L x W x H)
  • Weight: Approx. 750 g (w/o Batteries)

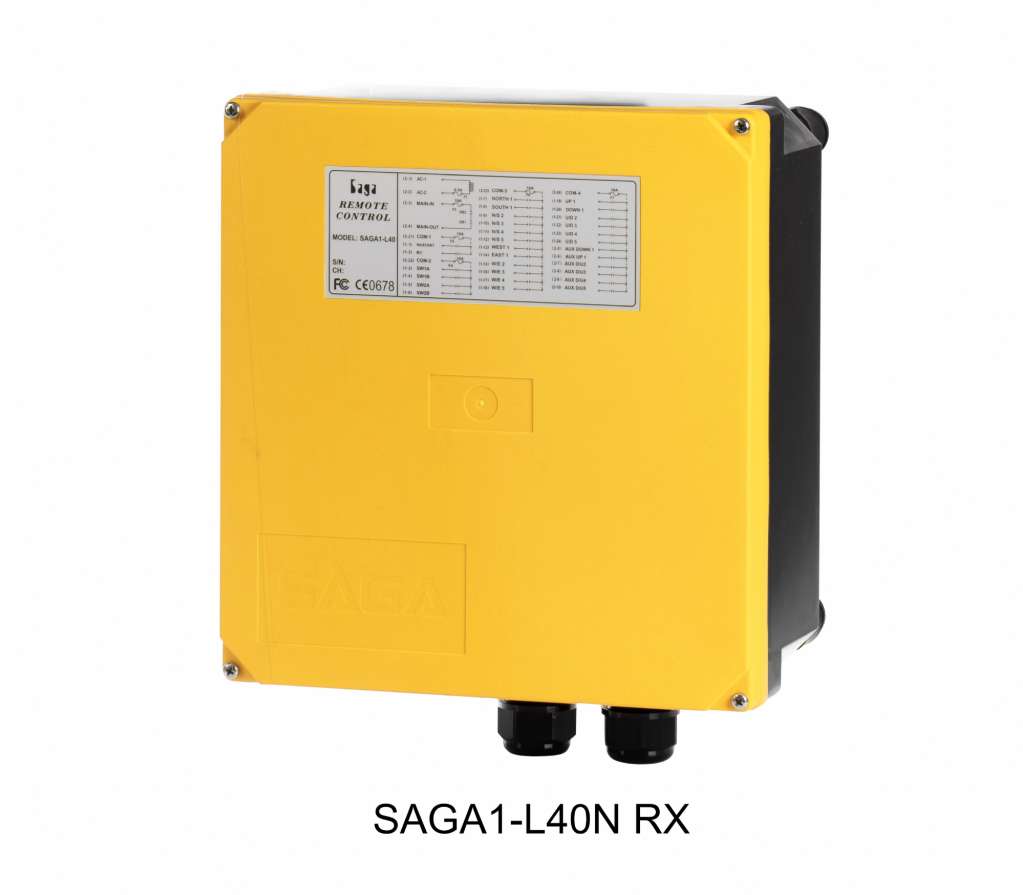

RECEIVER UNIT:
  • Dimension : 253 x 267 x 150 mm (L x W x H)
  • Weight : 2400g (w/o Cable)
  • Power Supply : 220/380 VAC (50 / 60Hz) ±20%,    12/24 VDC

The new generation SAGA1-L40N transmitter, is ergonomically designed with PLL synthersizer frequency control and high durability joystick. SAGA1-L40N is for a wide range of industrial applications (Tower Crane / Overhead Bridge Crane / Concrete Pump Truck / Hydraulic control).
SAGA1-L40N offer a large controls including 2 double axis joystick along with two(2) select switches. The light weight design transmitter greatly reduce the operator fatigue.
