SAGA1-L8B
SAGA1-L8B SAGA1-L8B SAGA1-L8B SAGA1-L8B

คลิกดูรูปสินค้า 360 องศา

Click to see the product 360°



>>รูปตัวส่ง L8B ใส่ซองใส<<

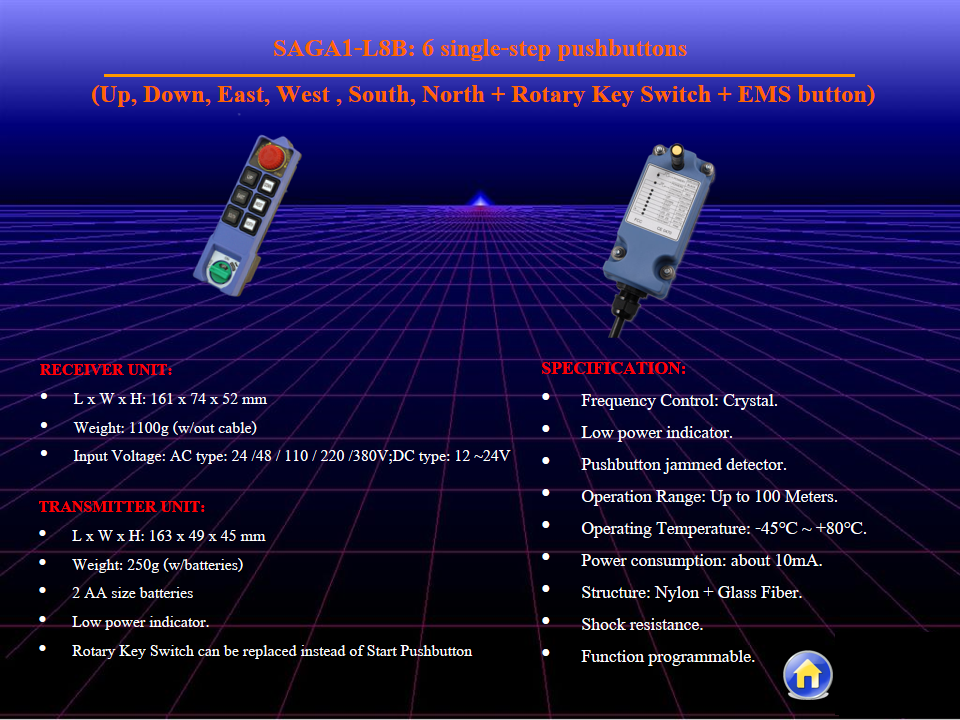

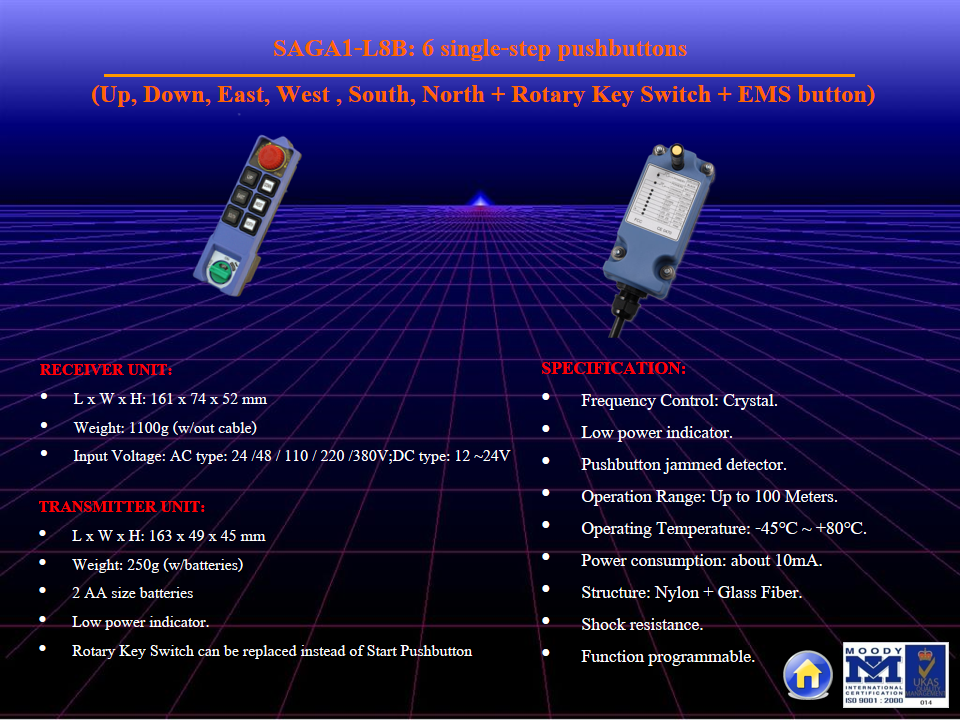

L8B : 6pushbuttons with 1-step ( Up,Down,East,West,South,North ) + EMS+ Start Key

Feature:
  • Durable , robust IP65(NEMA4)
  • New light weight (250g) user friendly design.
  • Advanced RF circuitry design with over 4.1 billion ID coders.
  • Extremely low Power Consumption - up to 3 months usage with 2 AA alkaline batteries.
  • Error - free Hamming code technology
  • Working temperature range from -45℃ ~ +80℃.
  • Long operating distance up to 100M.
  • Purposely designed for the control of high vibration heavy duty Mobile and industrial equipment
  • Pre - wired receiver for quick and easy installation.
  • Remote ID setting technology allowing for instant maintenance at site
  • Multi - optional receiver input power. AC type : 24/48, 48/110, 48/220, 110/220, 220/380V & DC type: 12~36V
  • Sensitivity: Approximately -105 dBm

GENERAL SPECIFICATIONS :
  • Enclosure : IP65(NEMA4)
  • Structure : Glass Fiber+Nylon
  • Operating Temperature : -45℃ ~ +80℃.
  • Relay : 5A/250VAC (AC POWER)
  • Relay : 15A/12-24 VDC (DC POWER)
  • ID Code 32 bit
  • Hamming distance > 4
  • Static > 15 KV
  • Remote ID Code Setting
  • Operating range : up to 100M
  • Function programmable

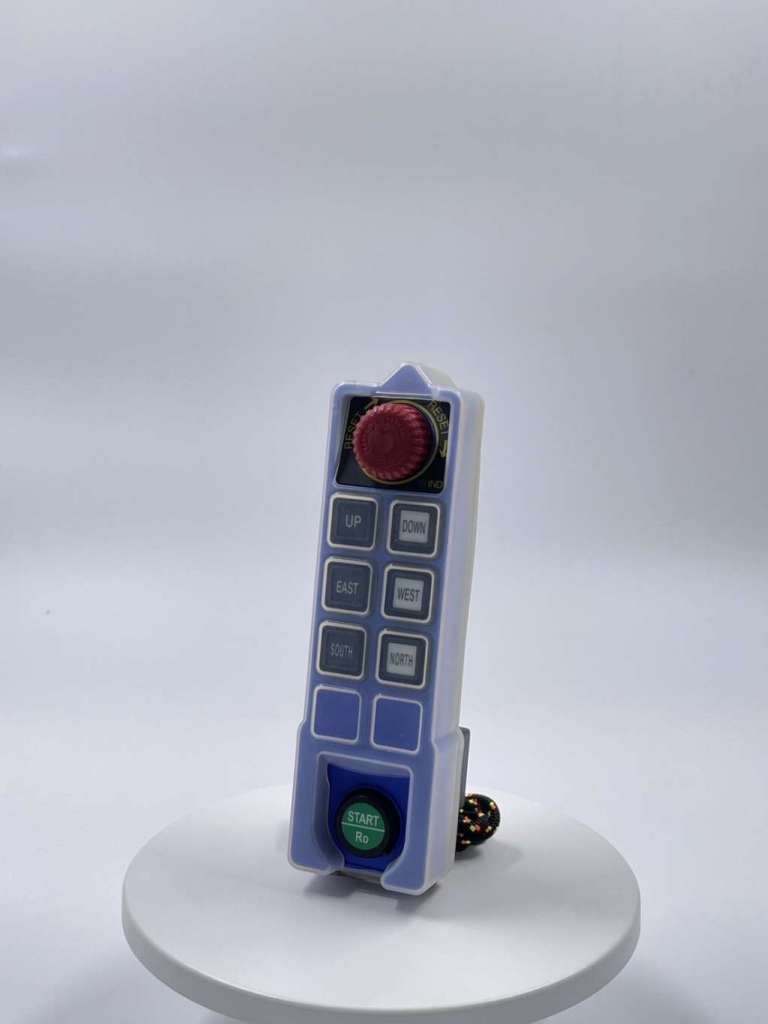

TRANSMITTER UNIT:
  • L * W * H : 163 * 49 * 45mm
  • Weight : 250g (w/batteries)
  • 2 AA size alkaline batteries
  • Low power indicator ( LED flash red )
  • Pushbutton jammed detector
  • Shock resistance
  • Output power < 4m W
  • Normal power consumption : about 10mA
  • Sleep mode consumption : less 1 µA
  • Modulation : FM

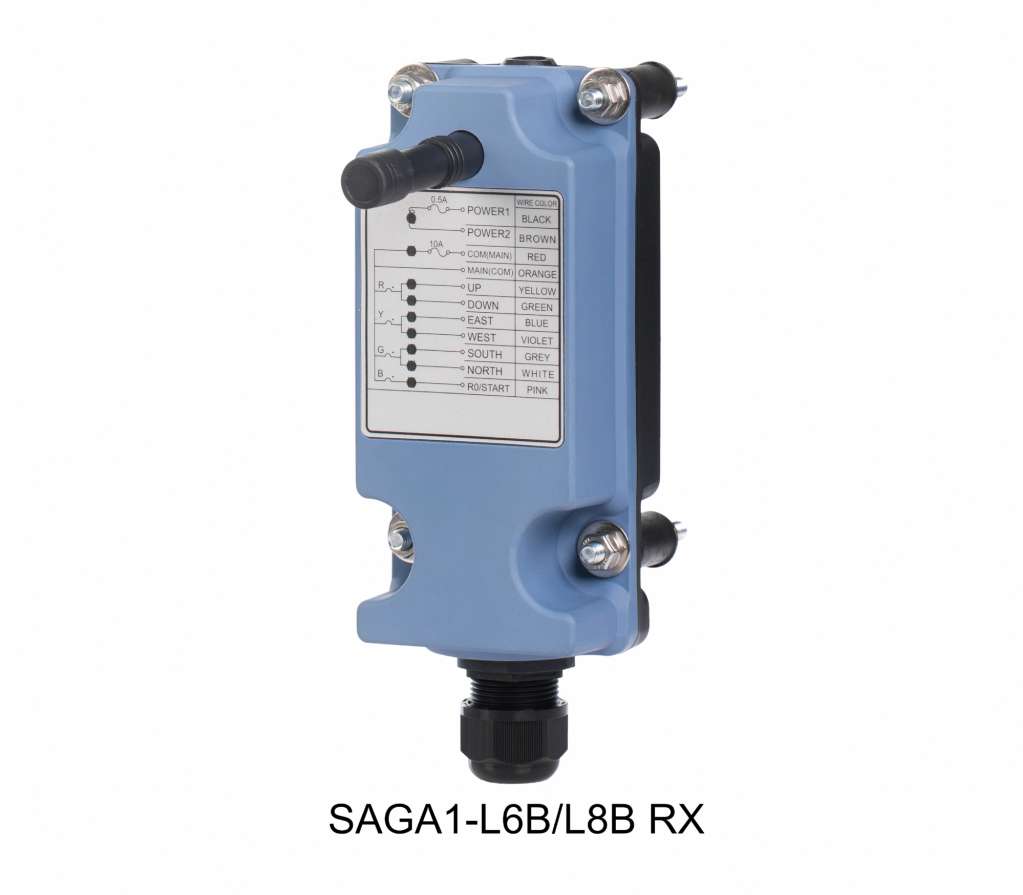

RECEIVER UNIT:
  • L * W * H : 161 * 74 * 52mm
  • Weight : 1100g (w/out cable)
  • AC type : 24/48, 48/110, 48/220, 110/220, 220/380VAC
  • Sensitivity : about - 105 d Bm
  • Shock resistance

รายละเอียดสินค้า
  • การควบคุม: Frequency Control: Crystal.
  • ระยะการส่ง: Operation Range: Up to 100 Meters.
  • สภาพแวดล้อม: Temperature: -45℃ ~ +80℃.
  • ความทนทาน: IP65(NEMA4), Nylon + Glass Fiber.
  • สั่งงาน: 1 speed, 3 motion
  • น้ำหนัก: TRANSMITTER UNIT:250g (w/2 batteries 2 AA size )
  • เมื่อแบตเตอรี่อ่อนจะมีไฟโชว์ วัสดุเป็น Fiber Glass จึงทำให้ทนทานต่อแรงกระแทกได้ดีโดยหากเสริมการใช้ด้วยซองแข็งชนิดพิเศษซึ่งเป็น optเสริมก็ยิ่งเพิ่มความทนทานที่มากขึ้น  การส่งคลื่นเป็นVHF จึงไม่รบกวนการทำงานของเครื่องจักร ปุ่มควบคุมการทำงานได้ทั้งฟังก์ชั่น หน่วงเวลา หรือ  การตังค่าการเปิดไฟแสงจันทร์หรือพัดลมในการปฏิบัติงานเหมาะกับ monorail crane ที่ไม่ต้องการความซับซ้อน
